Curve Editor

Use the curve editor to edit Keyframes within the sequencer.

To do this:

1.

Right click within the track that you want to edit.

2.

Select Curve Mode from the list. Alternatively, click the curve mode icon () to view the curve mode drop-down within the tree view, or press V to cycle through the modes.

3.

Keyframes within the curve editor can be dragged using the mouse. Four types of mode are supported:

• None - No curves are drawn between keyframes.

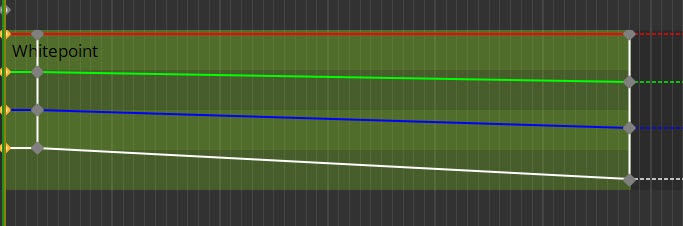

• Separate Curves - Draws curves between keyframes, with vertical offset representing relative value. Curves for each component of a vector-valued property are drawn separately.

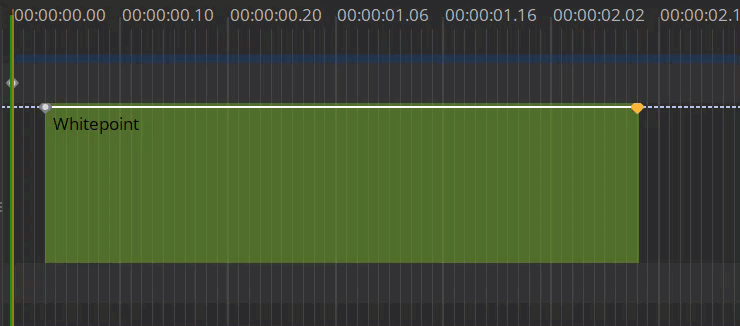

• Overlaid Curves - Draws curves between keyframes, with vertical offset representing relative value. Curves for each component of a vector-valued property are drawn on top of each other.

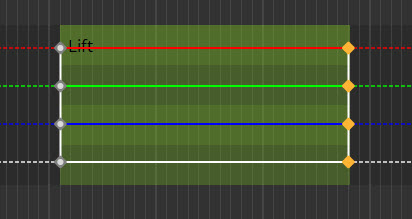

• Dopesheet - Basic lines are drawn between keyframes with no vertical offset.
