Network Setup

Once you have launched Nuke Stage via the Launcher, the first thing that should be done is the Relay and RenderNode connection.

Connecting to a Relay

To be able to discover and connect to RenderNodes on our network, as well as receive camera tracking data, you first need to connect to a Relay.

Go to the top of the Properties panel.

The Relay connection option is always at the top of the Properties panel, regardless of what property is displayed.

Click the Connect to a Relay… dropdown and select your network.

Note: The Relay connection is not a saved property and you will need to connect to a Relay whenever you restart a project.

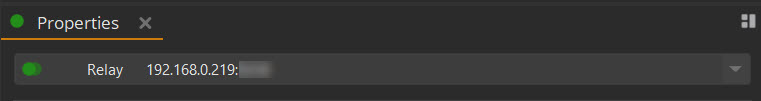

That Relay connection should then show green to indicate a successful connection.

Connecting to RenderNodes

Once the Relay is connected, you then need to add any available RenderNodes.

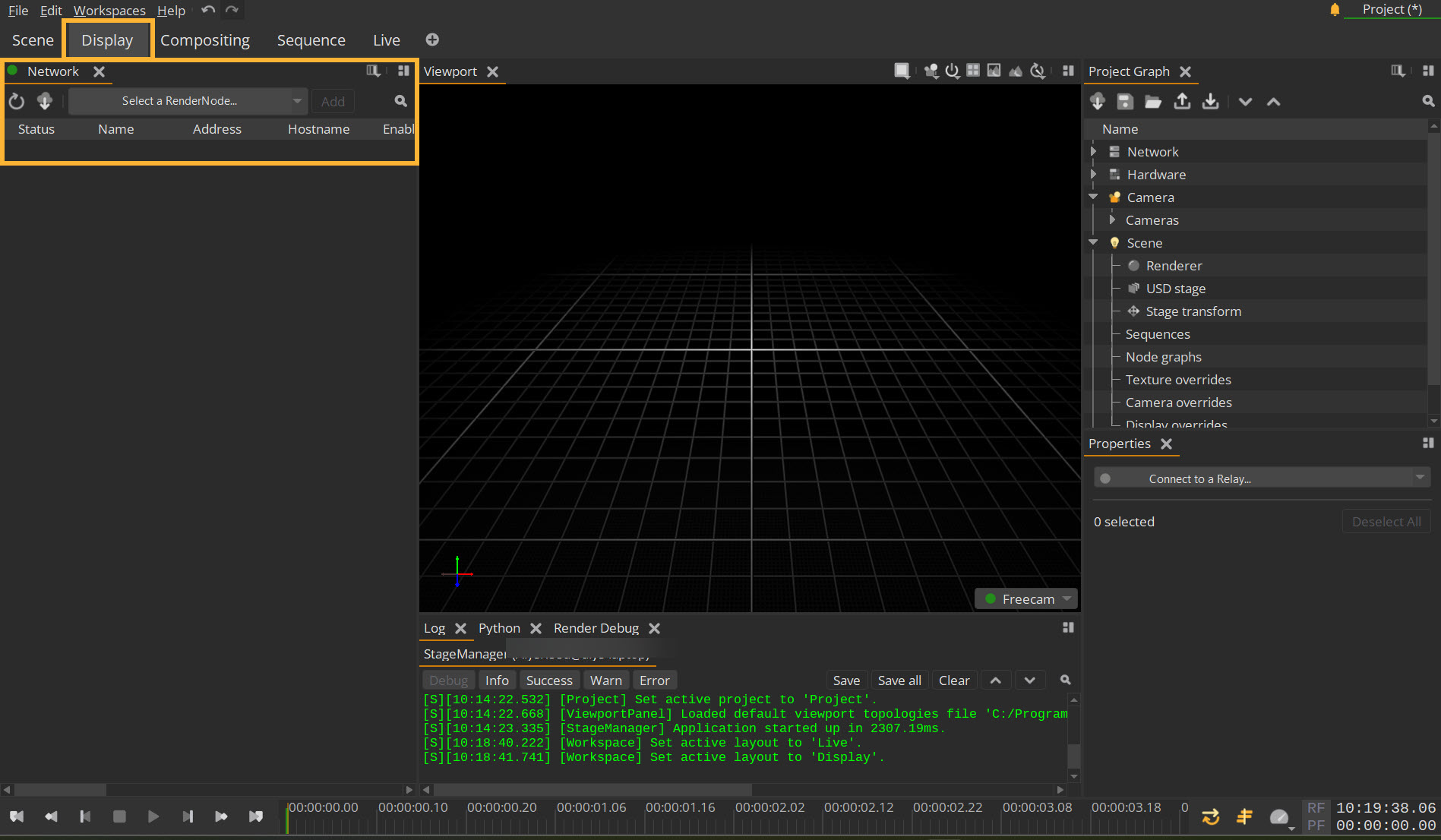

Open the Display tab and go to the Network panel.

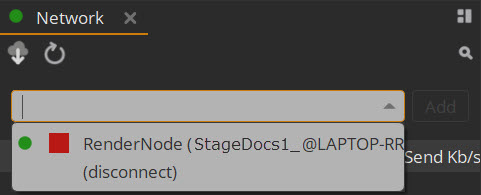

Find the Select a RenderNode… dropdown. This dropdown should display a list of every RenderNode application running on the network, so if you launched RenderNodes in your network using the launcher config json file, they should appear here if they launched successfully.

Select each RenderNode you wish to use and add using the Add button to the right of the dropdown.

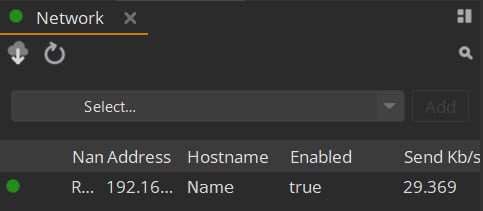

Once added, each RenderNode should appear in the list below the dropdown with a green icon if it’s connected successfully.

Network Panel Controls

This panel displays all the RenderNodes connected to the Nuke Stage project. The connected RenderNodes will display the following information:

• Name - Name of the RenderNode within Nuke Stage

• Address - I.P. Address

• Hostname - The location of the RenderNode on the network

• Enabled - when true the RenderNode is active in the project.

• Send Kb/s - the number of kilobytes per second sent by the RenderNode

• Recv Kb/s - the number of kilobytes per second received by the RenderNode.

Use the dropdown list to choose from RenderNodes that have been successfully launched on the network. To update this list, press the Refresh button . Use the Load active project from Relay icon to load the connected RenderNodes of that project.

Further information about each option can be found at Network Controls.

RenderNodes in the Image Viewer

Connection Status

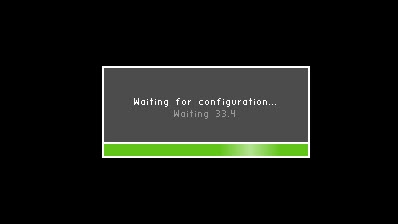

Once you’ve connected your RenderNode to the NukeStage Editor, a box will appear in the Image Viewer with a message stating it’s waiting for connection. This means it is waiting for an output mapping connection. See Creating Displays to learn more about this.

Then, once the RenderNode is connected via an output mapping the connection message will disappear leaving an all-black screen.

Playing Content

You need to press the Play button to see the content on the RenderNode. This can be found on the bottom bar of the NukeStage Editor UI. See Playback Controls to learn more about playback.

Debugging RenderNodes

Debug information is viewable from each RenderNode which may be of use while setting up and playing back. See Debug Views in the Reference Guide to learn more.
